The Color Card Printer ID-L offers flexibility to your daily card printing needs. You can simplify your card printing without
giving up quality and security. The ID-L direct-to-card printer produces vibrant color, edge-to-edge printing, and security
features to issue professional-looking cards instantly. The compact design only requires a small space and the lighter weight
helps you can transport it easily. The printer also comes with a optional single or dual hopper option where printing is made
easy for two different types of cards at the same time. With the integrated flipper single or dual sided printing is possible.

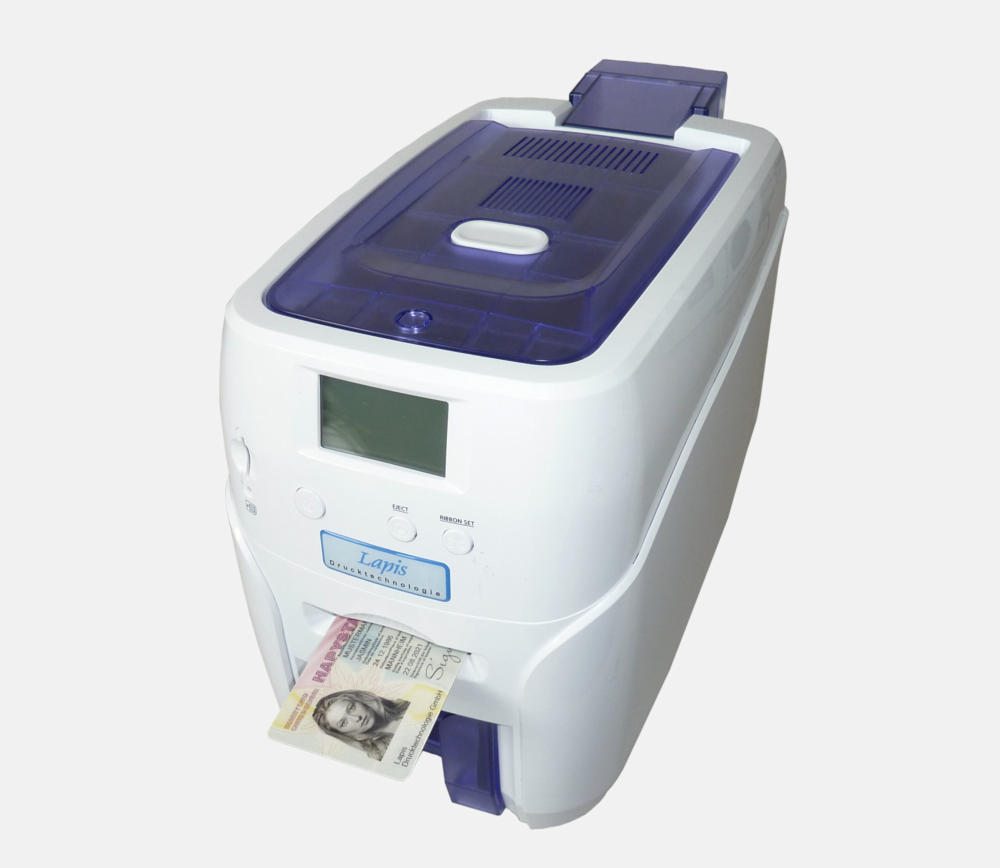

Color Card Printer ID-L
Flexible color printer for versatile applications
Printer
•
Direct-to-card Dye-sublimation / Resign thermal transfer
•
Single- or Dual sided printing
•
Additional hopper for the 2nd type of cards or the extend
•
Edge-to-edge printing
•
Full-color and monochrome printing capability
•
300dpi (11,8 dpm), 16,7 million color
•
128MB memory
Card
•
Card Type: PVC and composite PVC cards
•
Card Thickness: 0.4 ~ 1.2mm card
•
Card Format: ISO CR80-ISO 7810 (53.98mm x 85,60mm)
•
Input hopper: 100 cards (0.76mm) up to 200 cards with
dual hopper option
•
Output hopper: 60 cards (0.76mm)
•
Manual single feed: 1 card input
Printing Speed
•
Full-Color Printing
- Single Side: 180 ~ 200 cards/hr.
- Dual Side: 140 cards/hr.
•
Mono printing
- 800 cards/hr.
Security
•
Kensington physical lock slot
•
Hopper lock - optional
•
Top cover lock (ribbon lock) - optional
Optional Encoding
•
Magnetic Stripe encoding
- ISO7811
- JIS II
•
Contact smart card encoding
- ISO7816
- EMV Level 1 (PC/SC, serial)
•
Contactless smart card encoding
- ISO 1443 A/B, ISO 15693, Mifare
Interface
•
USB2.0 (High Speed)
•
Built in 10/100 Ethernet (optional)
•
WIFI (optional)
Driver & Software
•
Operating system
- Windows Vista, Windows 7 / 8 / 10
- Windows 2003 / 2008 server
•
Software Package: Card Designer for easy printing
•
Font: True Type Fonts via Windows Drivers
Power
•
Input: AC 100V ~ 240V, 50/60Hz
•
Output: DC 24V, 2.5A
Printer Dimension and weight
LxWxH(mm): 366x184x228
Weight: 4.5kg
